SKUDO

THE ARMOURED DISPENSER

When Security and Vending merge into an unbreakable bond

Skudo is the FAS armoured vending machine designed for public places, such as railway stations or subways. With its reinforced and tamper-proof structure, it is well-known for its high safety performance.

Connected

and smart

Built-in WiFi

The Wi-Fi 2.0 connection ensures a stable connection to the internet network for managing all dedicated online services. The connection can be established via Dingle internet key as well.

Fas Cloud +

Fas Cloud + simplifies machine operation, allowing multiple remote operations. These include: error reset, interface and firmware upgrades, media, pricing, remote product dispensing and more.

Built-in Satispay

Thanks to the Fas – Satispay partnership, the payment platform can be used directly on the vending machine, without the use of additional hardware.

Break-in-proof

handle

Convenient and secure, it allows easy opening of the vending machine door.

Shielded closing

system

Maximum safety for this armoured vending machine. The armoured, burglary resistant closure on three anchor points makes it virtually impossible to force the vending machine.

Nothing is left to chance

Armoured vending machine, maximum security in every detail

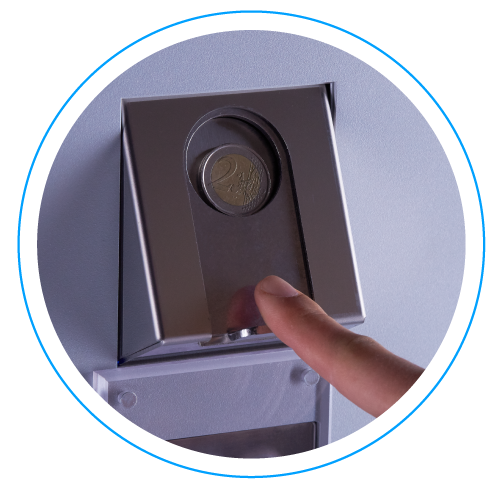

Tamper-proof coin insertion compartment

The coin introduction compartment of Fas Skudo is specially designed to prevent the introduction of foreign bodies.

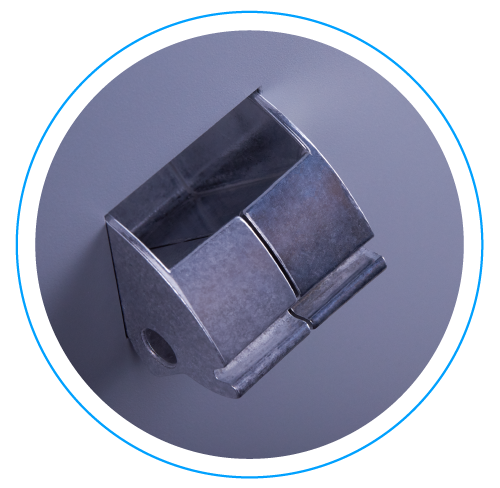

Reinforced coin return compartment

The flap container for collecting the change has been reinforced in order to prevent the upward introduction of wires or other objects.

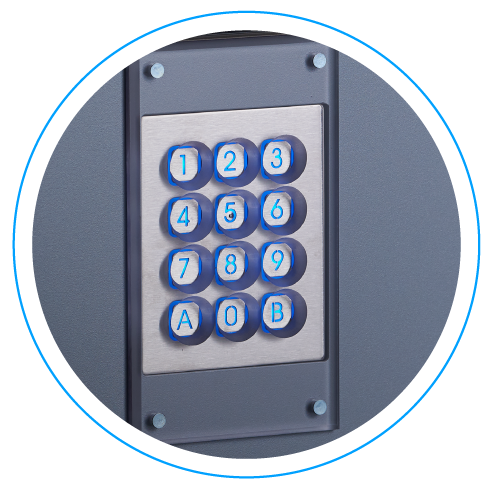

5 mm Lexan for keypad protection

The 5 mm lexan panel protects the keyboard and prevents tampering.

Display 7″

With dual function

Visual functions for the user

The tablet, covered by a solid lexan panel, cannot be actively used by the user, but can provide visual information and advertising

Programming function

With quick access from the inside, the tablet can be removed and used by the technician during programming

Drawer

Display

Increases sales volume, while making the vending machine more attractive.

Additional features

Easy Click

The patented system that allows quick reconfiguration of drawers

The patented Fas quick repositioning system makes it much easier to change the configuration of the vending machine without the need to use tools and speeds up the whole operation.

Technical Specification

Dimension

Number of options Up to 70
Height 1845 mm
Width 1080 mm
Depth 865 mm
Open door size (P side) 1810mm
Weight 280 Kg

Aesthetics

Frame colour Graphite gray
Interface Illuminated keyboard and display
Product pick-up compartment Reinforced standard

Consumption

Energy class D
Power supply (V/Hz) 230/50
Minimum temperature + 3° with refrigerator safety

Equipment

Anti-burglary profile no
Minimum internal temperature +3 con sicurezza frigo sui 3 cassetti in basso
